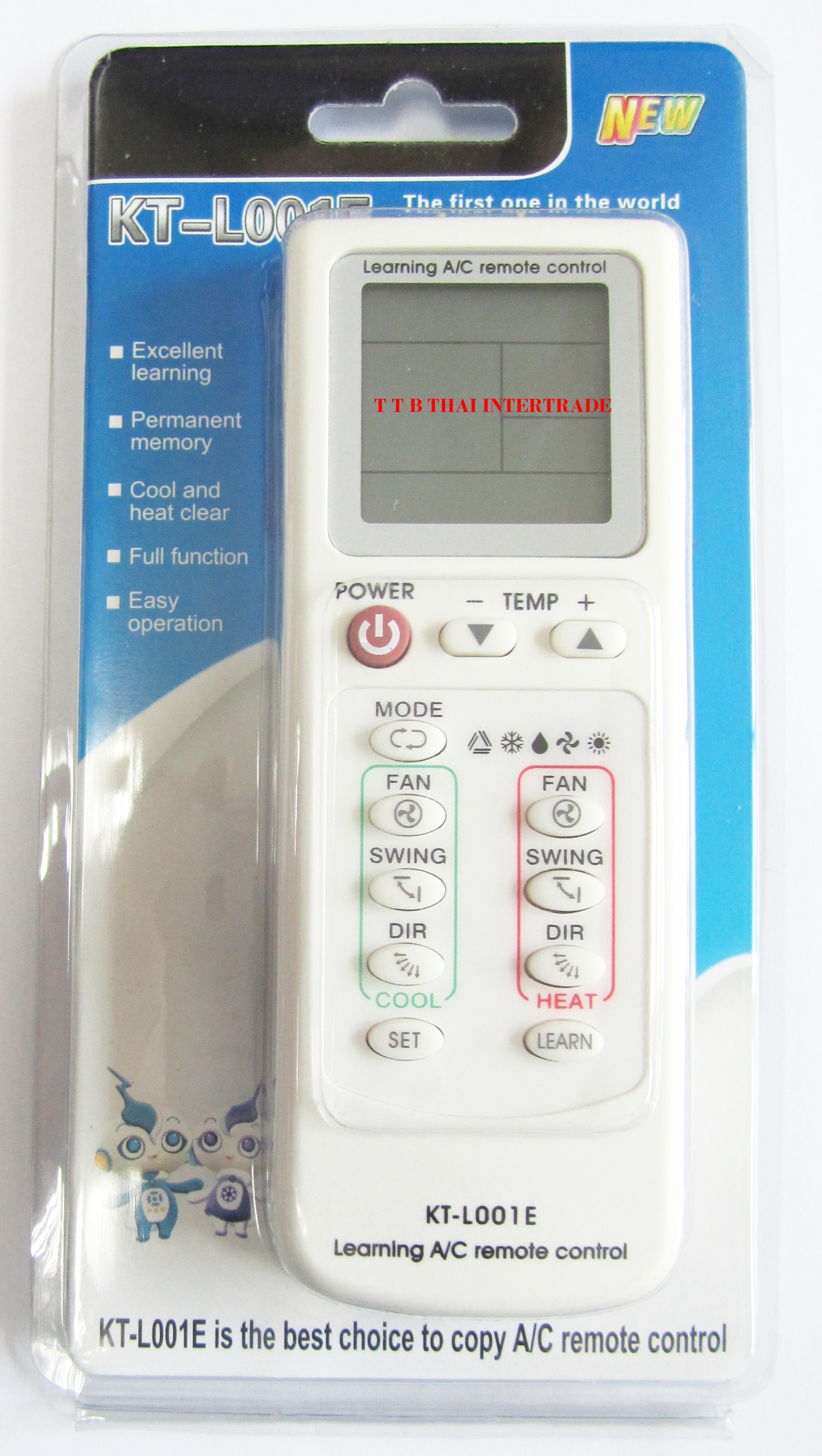

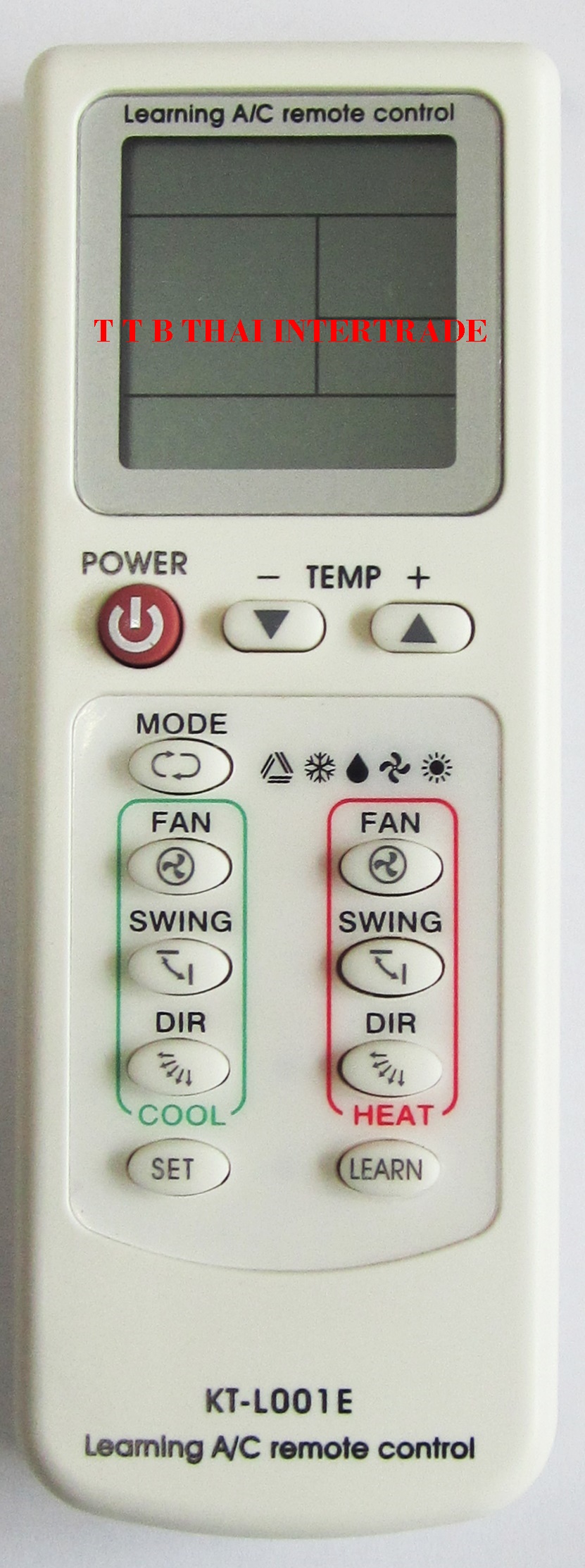

Universal Learning A/C Remote KT-L001E

KT-L001E Universal Learning A/C Remote

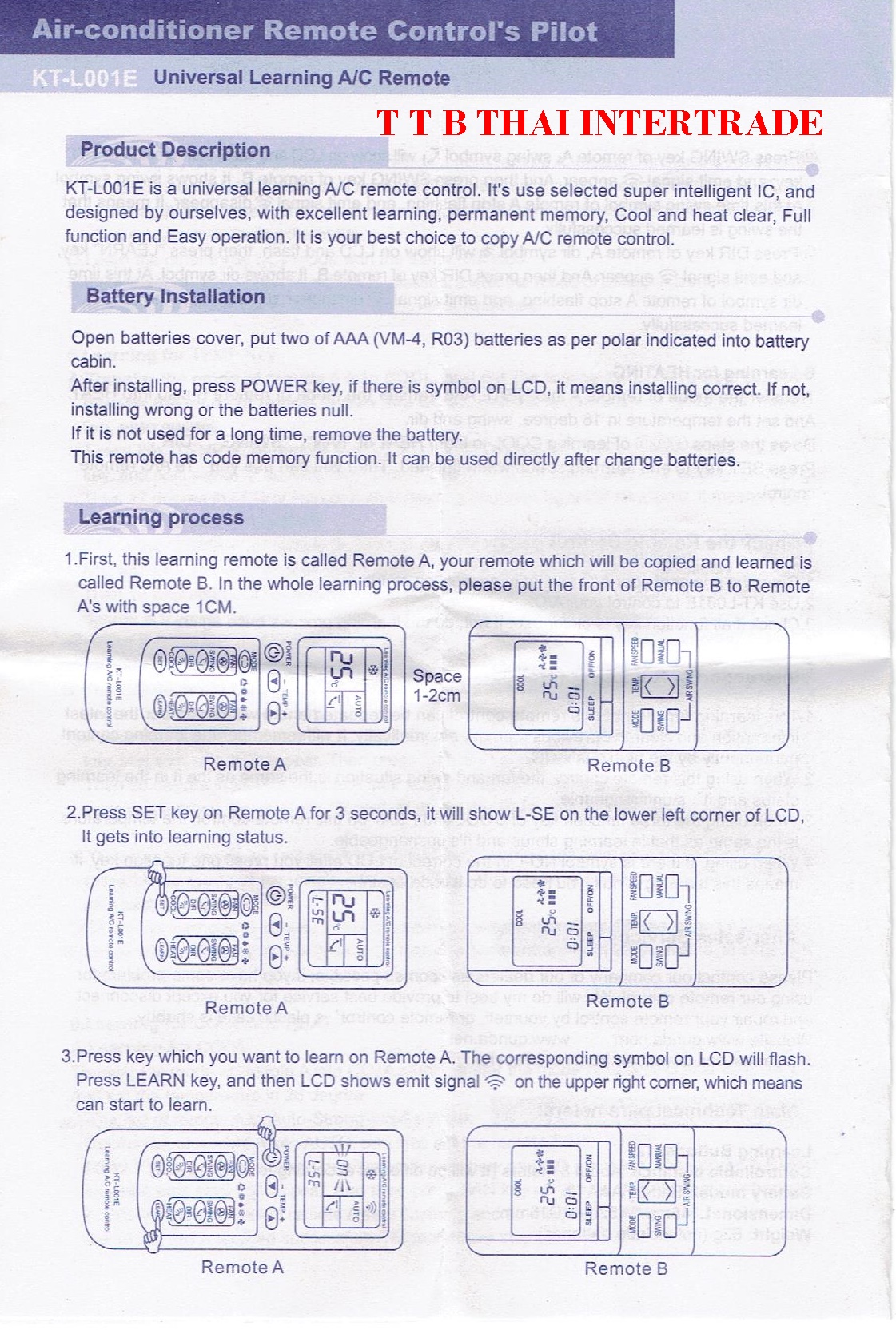

Learning process

1. First, this learning remote in called Remote A, your remote which will be copied and learned is called Remote B. In the whole learning process, please put the front of Remote B to Remote A’s with space 1CM.
2. Press SET key on Remote A for 3 seconds, it will show L-SE on the lower left corner of LCD, It gets into learning status.
3. Press key which you want to learn on Remote A. The corresponding symbol on LCD will flash. Press LEARN key, and then LCD shows emit signal     on the upper right corner, which means can start to learn.

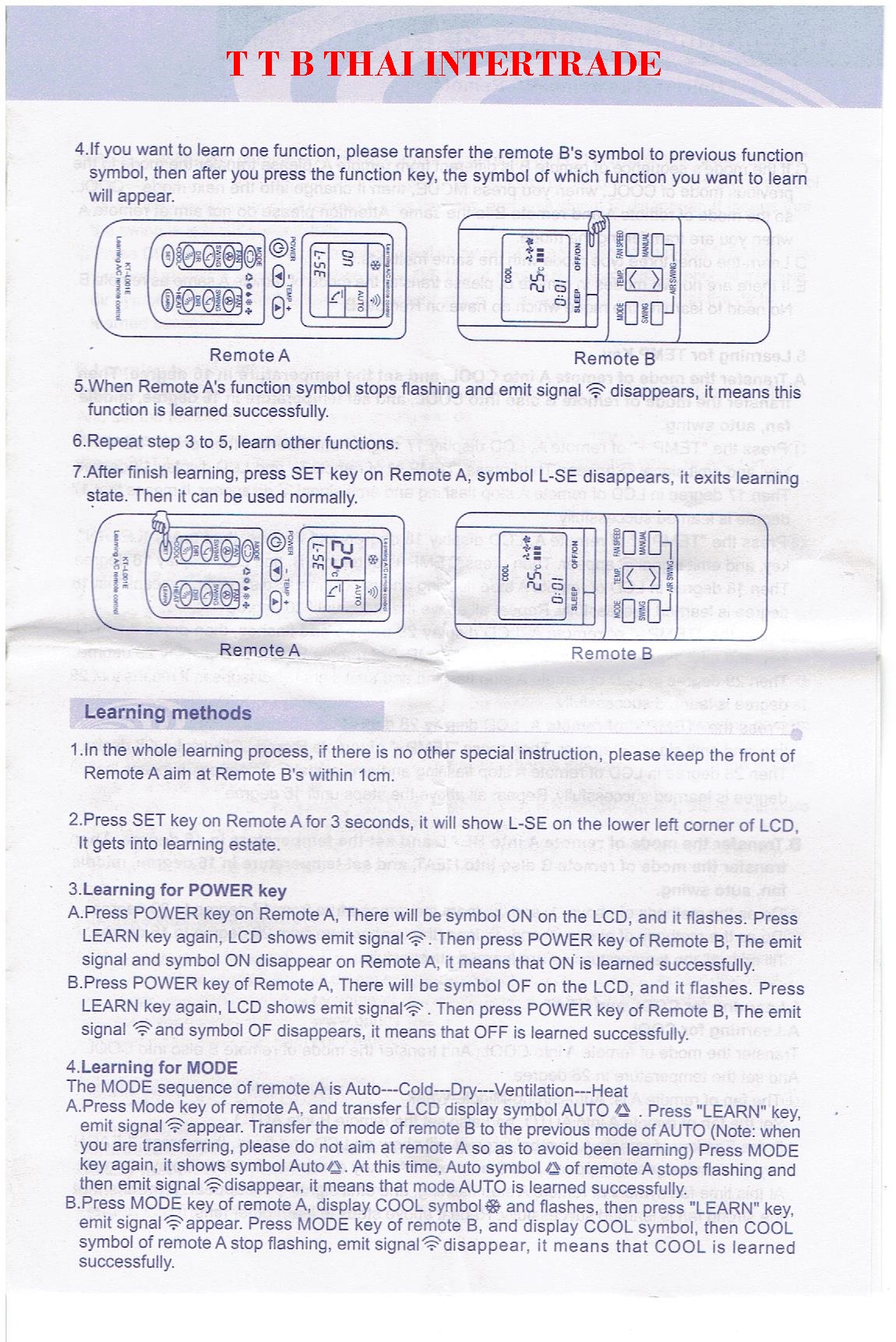

4. If you want to learn one function, please transfer the remote B’s symbol to previous function symbol, then after you press the function key, the symbol of which function you want to learn will appear.
5. When Remote A’s function symbol stops flashing and emit signal   disappears, it means this function is learned successfully.
6. Repeat step 3 to 5, learn other functions.
7. After finish learning, press SET key on Remote A, symbol L-SE disappears, it exits learning state. The it can be used normally.

รหัสสินค้า : KT-L001E
